ZAP470 使用說明書 – Windows 11 如何連接 三螢幕 呢？

---

Windows 11 如何安裝連接 三螢幕

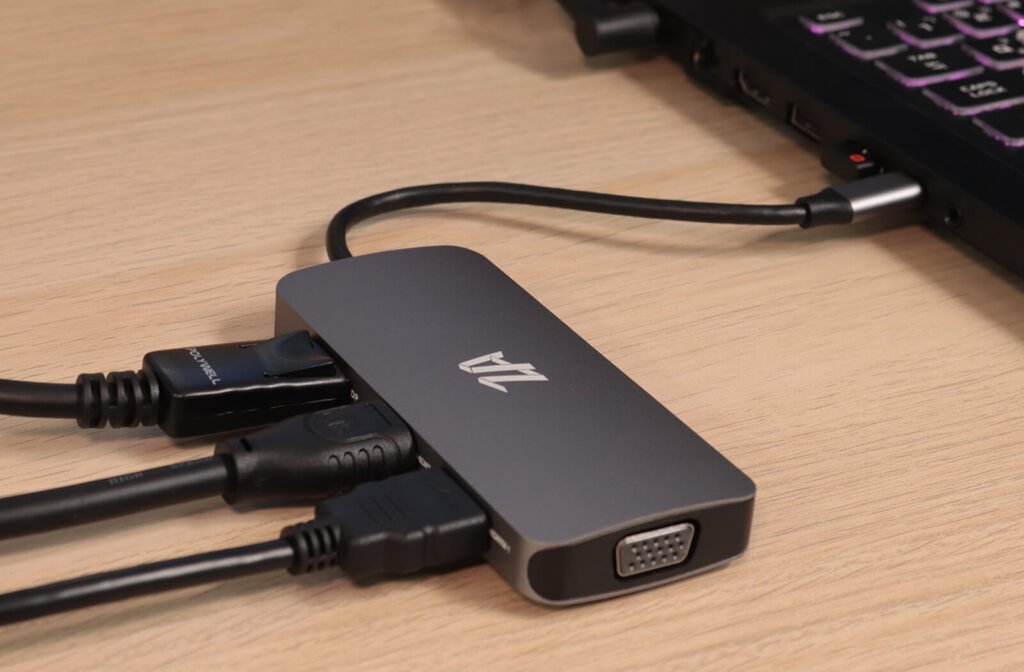

ZAP470功能介面介紹

• 4K UHD高畫質
• 3埠 USB (A) 高速讀寫
• 2埠 HDMI 支援 4K UHD 解析度
• 1埠 Display Port 支援 4K UHD 解析度
• 1埠 VGA 支援 Full HD

參考文章 ： MHL 和 USB Type-C DP alt mode 支援清單

1.將 ZAP470 Type-C頭 插入 Windows 筆電 Type-C插孔

2. 準備 3 條連接顯示器延長線(HDMI、Display Port或VGA)並各自插入顯示器輸入孔

3.再將顯示器延長線另外一頭插入 ZAP470 對應孔位，就即可雙螢幕顯示

畫面延伸步驟

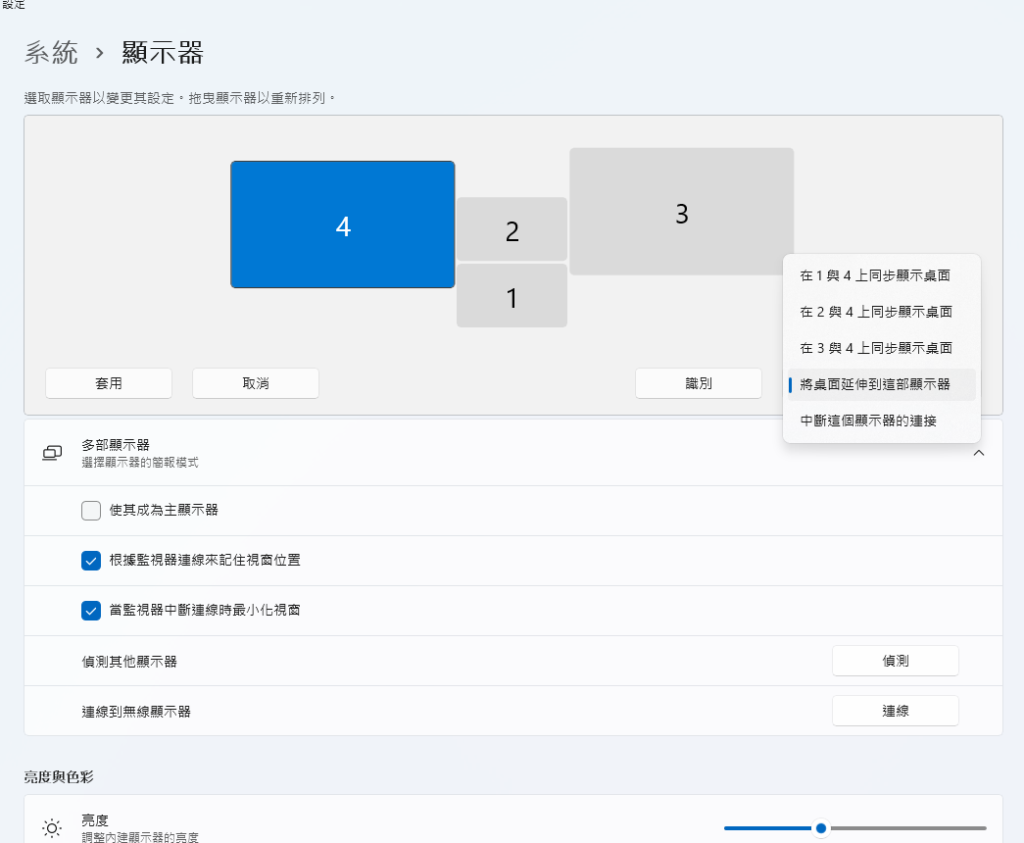

1.首先在桌面按滑鼠右鍵 -> 顯示設定。

2.選擇顯示器 -> 選擇 多部顯示器 將桌面延伸到這部顯示器 即可畫面延伸

---

閱讀相關文章： ZAP470 使用說明書 – Windows 10 如何連接 雙螢幕 呢？

閱讀相關文章： ZAP470 使用說明書 – Macbook M2 如何連接 顯示器 ？

推薦文章

• 最新2022 4k螢幕推薦~前12款高cp值4k螢幕報你知

相關產品

SET THE PRIMARY AND SECONDARY MONITOR

1. Right-click on your desktop and select “Display”. At the top of the resulting dialogue box, your available monitors appear as blue, numbered boxes. Each box represents a monitor (e.g. box “1” corresponds with the left monitor and box “2” corresponds with the right monitor).
2. From the display, select the monitor you wish to be your main display.
3. Check the box that says “Make this my main display.” The other monitor will automatically become the secondary display.
4. When finished, click [Apply].

SET THE MONITOR RESOLUTION

1. Right-click on your desktop and select “Display”. At the top of the resulting dialogue box, your available monitors appear as blue, numbered boxes. Each box represents a monitor (e.g. box “1” corresponds with the left monitor and box “2” corresponds with the right monitor).
2. From the display, select the monitor you wish to adjust.
3. Click the “Advanced display settings” link (located at the bottom of the dialogue box).
4. Click the “Resolution” drop-down menu and select your desired resolution.
5. When finished, click [Apply].
